Continuous Colour from Red to Violet

$0.00

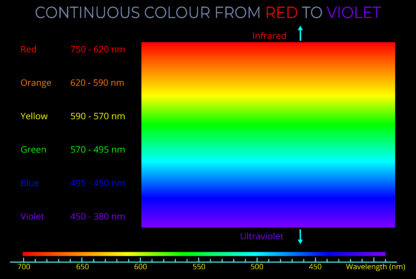

This diagram shows six electromagnetic waves. Each wave corresponds with a colour within the visible spectrum that an observer might recognise.


Remember that:

  • Electromagnetic waves, which are a form of electromagnetic radiation, propagating from a light source, travel through space and encounter different materials.
  • Colour is not a property of electromagnetic radiation, but an aspect of visual perception.
  • A human observer can distinguish between colours corresponding with many thousands of wavelengths of light in the visible spectrum. These colours are often called spectral colours.
  • The largest part of the electromagnetic spectrum is outside the wavelengths of visible light and so invisible to a human observer.
  • Beyond red are infrared, microwaves and radio waves for example. Some radio waves have a wavelength longer than a kilometre (1000 metres).
  • Beyond violet are ultraviolet, X-rays, and gamma rays for example. Some gamma rays have a wavelength of one billionth part of a metre.
  • There are no properties of electromagnetic radiation that distinguish visible light from other parts of the electromagnetic spectrum.
  • Objects appear to be different colours to an observer depending on the wavelengths, frequencies and amplitude of visible light at the moment it strikes the retina at the back of the eye.

Description

Continuous Colour from Red to Violet

TRY SOME QUICK QUESTIONS AND ANSWERS TO GET STARTED
Red and orange are two of the colours in the visible spectrum with the longest wavelengths.
A human observer is a person who watches something from their own unique point of view.
The visible spectrum is associated with the colours red, orange, yellow, green, blue and violet.
The unit used to measure the wavelengths of visible light is the nanometre.

About the diagram

About the diagram
  • This diagram is about the visible spectrum and which wavelengths of electromagnetic radiation correspond with the different colours we see in the world.
  • It shows that a human observer can distinguish between colours corresponding with thousands of wavelengths of visible light.
  • The visible spectrum (a rainbow for example) can be thought of as six bands of colour or as being made up of light rays of different wavelengths, each distinguished by its measurement in nanometres.
  • The visible spectrum is made up of an infinite gradation of wavelengths and colours. The total number of colours in the world is limited only by the sensitivity of human vision and the size of the units of measurement used to calculate wavelength.
  • The list down the left of the diagram represents the visible spectrum as bands of wavelengths and bands of colour.
  • The scale along the bottom marks out the visible spectrum in nanometres with the corresponding colours shown above.
Remember that:
  • Objects appear to be different colours to an observer depending on their wavelength.
  • The name given to light that contains all wavelengths of the visible spectrum is white light.
  • When all wavelengths contained in white light reflect off a neutral coloured surface then the object appears white to an observer.
  • When a narrow band of wavelengths reflect off a neutral coloured surface then the object appears coloured to an observer.
  • The colour an observer sees depends on the wavelengths of visible light emitted by a light source and on which of those wavelengths are reflected off an object.
  • Although a human observer can distinguish between many thousands of wavelengths of light in the visible spectrum our brains often produce the impression of bands of colour.

Some key terms

Wavelength is the distance from any point on a wave to the corresponding point on the next wave. This measurement is taken along the middle line of the wave.

  • While wavelength can be measured from any point on a wave, it is often simplest to measure from the peak of one wave to the peak of the next, or from the bottom of one trough to the bottom of the next, ensuring the measurement covers a whole wave cycle.
  • The wavelength of an electromagnetic wave is usually given in metres.
  • The wavelength of visible light is typically measured in nanometres, with 1,000,000,000 nanometres making up a metre.
  • Each type of electromagnetic radiation – such as radio waves, visible light, and gamma waves – corresponds to a specific range of wavelengths on the electromagnetic spectrum.

ROYGBV are the initials for the sequence of colours that make up the visible spectrum: red, orange, yellow, green, blue, and violet.

  • The visible spectrum refers to the range of colours visible to the human eye.
  • White light, when passed through a prism, separates into a sequence of individual colours corresponding with ROYGBV which is the range of colours visible to the human eye.
  • White light separates into ROYGBV because different wavelengths of light bend at slightly different angles as they enter and exit the prism.
  • ROYGBV helps us remember the order of these spectral colours starting from the longest wavelength (red) to the shortest (violet).
  • A rainbow spans the continuous range of spectral colours that make up the visible spectrum.
  • The visible spectrum is the small band of wavelengths within the electromagnetic spectrum that corresponds with all the different colours we see in the world.
  • The fact that we see the distinct bands of colour in a rainbow is an artefact of human colour vision.

The visible part of the electromagnetic spectrum is called the visible spectrum.

  • The visible spectrum is the range of wavelengths of the electromagnetic spectrum that correspond with all the different colours we see in the world.
  • As light travels through the air it is invisible to our eyes.
  • Human beings don’t see wavelengths of light, but they do see the spectral colours that correspond with each wavelength and colours produced when different wavelengths are combined.
  • The visible spectrum includes all the spectral colours between red and violet and each is produced by a single wavelength.
  • The visible spectrum is often divided into named colours, though any division of this kind is somewhat arbitrary.
  • Traditional colours referred to in English include red, orange, yellow, green, blue, and violet.

A nanometre (nm) is a unit of length in the metric system, equal to one billionth of a metre (1 nm = 1 × 10⁻⁹ metres). It is commonly used to measure extremely small distances, particularly at the atomic and molecular scale.

  • In the context of light and electromagnetic radiation, a nanometre is often used to describe wavelengths of visible light.
    The wavelength of visible light ranges from about 700 nm (red) to 400 nm (violet).
  • Nanometres are also used to measure components like the thickness of materials, the size of particles in nanotechnology, and the spacing between atoms in a crystal lattice.

The visible spectrum is the range of wavelengths of the electromagnetic spectrum that correspond with all the different colours we see in the world.

  • As light travels through the air it is invisible to our eyes.
  • Human beings don’t see wavelengths of light, but they do see the spectral colours that correspond with each wavelength and colours produced when different wavelengths are combined.
  • The visible spectrum includes all the spectral colours between red and violet and each is produced by a single wavelength.
  • The visible spectrum is often divided into named colours, though any division of this kind is somewhat arbitrary.
  • Traditional colours referred to in English include red, orange, yellow, green, blue, and violet.

The electromagnetic spectrum includes electromagnetic waves with all possible wavelengths of electromagnetic radiation, ranging from low-energy radio waves through visible light to high-energy gamma rays.

  • There are no precisely defined boundaries between the bands of electromagnetic radiation in the electromagnetic spectrum.
  • The electromagnetic spectrum includes, in order of increasing frequency and decreasing wavelength: radio waves, microwaves, infrared radiation, visible light, ultraviolet radiation, X-rays and gamma rays.
  • Visible light is only a very small part of the electromagnetic spectrum.

White light is the term for visible light that contains all wavelengths of the visible spectrum at equal intensities.

  • The sun emits white light because sunlight contains all the wavelengths of the visible spectrum in roughly equal proportions.
  • Light travelling through a vacuum or a medium is termed white light if it includes all wavelengths of visible light.
  • Light travelling through a vacuum or air is not visible to our eyes unless it interacts with something.
  • The term white light can have two meanings:
    • It can refer to a combination of all wavelengths of visible light travelling through space, regardless of observation.
    • What a person sees when all colours of the visible spectrum hit a white or neutral-coloured surface.

Rainbow colours are the colours seen in rainbows and in other situations where visible light separates into its different wavelengths and the spectral colours corresponding with each wavelength become visible to the human eye.

  • The rainbow colours (ROYGBV) in order of wavelength are red (longest wavelength), orange, yellow, green, blue and violet (shortest wavelength).
  •  It is the sensitivity of the human eye to this small part of the electromagnetic spectrum that results in our perception of colour.
  • The names of rainbow colours are a matter more closely related to the relationship between perception and language than anything to do with physics or scientific accuracy. While the spectrum of light and the colours we see are both determined by wavelength, it’s our eyes and brains that turn these differences in light into the colours we experience.
  • In the past, rainbows were sometimes portrayed as having seven colours: red, orange, yellow, green, blue, indigo and violet.
  • Modern portrayals of rainbows reduce the number of colours to six spectral colours, ROYGBV.
  • In reality, the colours of a rainbow form a continuous spectrum and there are no clear boundaries between one colour and the next.
