# Reflection & Refraction – 90 deg to Tangent

\$0.00

The diagram shows an incident ray of light approaching the boundary between air and glass.

• When the ray strikes the boundary between air and glass some of the light bounces off the surface of the glass because it is highly reflective.
• The diagram demonstrates that the angle of incidence and angle of reflection are the same.
• The angles of incidence and reflection are both measured between the ray and the normal (the dotted green line).
SKU: N/A Category:

## Description

#### Reflection and Refraction - 90 deg to Tangent

###### TRY SOME QUICK QUESTIONS AND ANSWERS TO GET STARTED
Yes! When light leaves a vacuum or travels from one transparent medium into another, it undergoes refraction causing it to change both direction and speed.
As light travels from a fast medium such as air to a slow medium such as water it bends toward 'the normal' and slows down. As light passes from a slow medium such as diamond to a faster medium such as glass it bends away from 'the normal' and speeds up.
Yes! Refraction occurs as light crosses the boundary between transparent media with different refractive indices.
Yes! Light travels faster in air than in water.

#### About the diagram

Have you already checked out An Introduction to Reflection, Refraction and Dispersion?

It is the opening page of our Reflection, Refraction and Dispersion Series and contains masses of useful information. This is the table of contents:

• This page provides an introduction to a situation in which both reflection and refraction take place.
• It looks at the path of white light rather than at the paths of the different wavelengths that white light contains.
• Related topics including dispersion are covered on other pages of this series.
• Introductions to term refractive index and the law of refraction (sometimes called Snell’s law) also appear on later pages in the series.

An overview of reflection

• Reflection takes place when incoming light strikes the surface of a medium and the light bounces off and returns into the medium from which it originated.
• Reflection takes place when light is neither absorbed by an opaque medium nor transmitted through a transparent medium.

An overview of refraction

• Refraction refers to the way that light (electromagnetic radiation) changes direction and speed as it travels from one transparent medium into another.
• Refraction takes place as light travels across the boundary between different transparent media and is a result of their different optical properties.
• When light is refracted its path bends and so changes direction.
• The effect of refraction on the path of a ray of light is measured by the difference between the angle of incidence and the angle of reflection.
• As light travels across the interface between different media (such as between air and glass) it changes speed.
• Depending on the media through which light is refracted, its speed can increase or decrease.

Partial reflection and refraction

• When light strikes the boundary between two different media it may be partially reflected and partially refracted.
• If both reflection and refraction take place:
• A proportion of the light bounces off the surface of the new medium it encounters and returns into the medium from which it originated.
• A proportion crosses the boundary and undergoes refraction, so changes speed and direction.

The diagram

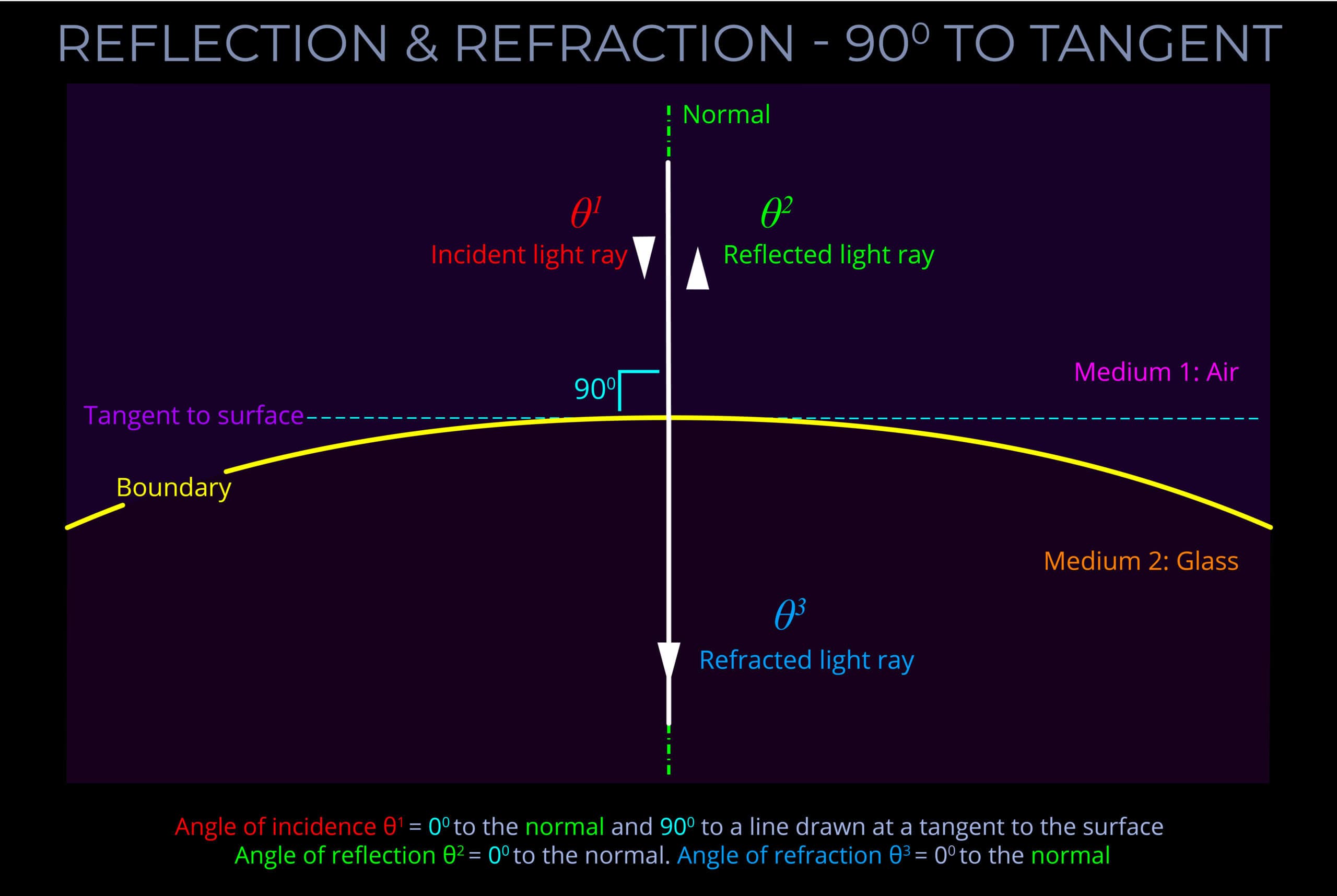

The diagram shows an incident ray of light approaching the curved boundary between air and glass.

• When the ray strikes the boundary between air and glass partial reflection and partial refraction takes place. This means that a proportion of the light bounces off the surface of the glass and returns into the air whilst the rest undergoes refraction.
• In this diagram, the incident ray of light approaches the boundary between air and glass at an angle of incidence is 00 to the normal.
• Because the boundary forms a curved surface the normal is drawn at a tangent.
• The reflected ray bounces off in line with the incident ray, at a 00 angle to the normal, and retraces its path.
• The refracted ray crosses the surface in line with the incident ray, at a 00 angle to the normal.
• In this unique case, refraction produces a change in speed but does not produce a change in direction.

Refraction refers to the way that electromagnetic radiation (light) changes speed and direction as it travels from one transparent medium to another.

• In all other cases, as incident light undergoes refraction, as it travels from a faster medium to a slower medium, it bends toward the normal.
• In this case, in which the incident light approaching the boundary is already in line with the normal, at an angle of incidence is 00, the change in direction is also 00.
• As light travels across the interface between different media and undergoes refraction it changes speed.
• This case is no different. Because the optical density of the glass is greater than that of air, the speed of light decreases.

Reflection takes place when incoming light strikes the surface of a medium, some wavelengths are obstructed, and the wavefront bounces off and returns into the medium from which it originated.

• The laws of reflection are as follows:
• The incident ray, the reflected ray and the normal all lie in the same plane.
• The angle which the incident ray makes with the normal is equal to the angle which the reflected ray makes with the same normal.
• The reflected ray and the incident ray are on the opposite sides of the normal.
• Reflection takes place when light is neither absorbed by an opaque medium nor transmitted through a transparent medium.

Types of reflection

• When sunlight strikes window glass, some light is reflected and some is transmitted through the glass into the room beyond.
• The type of glass made for picture framing is designed to reflect some wavelengths and to transmit others.
• When light illuminates objects and then goes on to strike a mirror, the reflected image can be seen by an observer.
• A reflected image contains objects that we recognise and is made up of visible wavelengths of light and their corresponding colours.
• If a reflecting surface is very smooth, light waves remain in the same order as they bounce off the surface, producing a specular reflection.
• A diffuse reflection, in which no image is visible, results from light reflecting off a rough surface and light waves scattering in all directions.
• Reflection is independent of the optical density of the medium through which incident light travels or of the medium it bounces off.

• When light crosses the boundary between two different transparent media it undergoes refraction.
• The effect of refraction is that light changes speed along with its direction of travel.
• The result of the change in direction is that rays either bend towards or away from the normal.
• As the speed of light changes so does its wavelength but frequency and so the colour an observer sees remains the same.
• The normal is an imaginary line drawn on a ray diagram at right angles (perpendicular) to the boundary between two media.
• The change between the angle of incidence and the angle of refraction of a ray of light is always measured between the ray and the normal.
• Whether light bends towards or away from the normal depends on the difference in optical density of the new medium it encounters.
• An incident ray of light is refracted towards the normal and slows down when it travels from air into glass. Compared with air, glass is a slower, more optically dense medium (with the higher refractive index).
• An incident ray of light is refracted away from the normal and speeds up when it travels from glass into air. Compared with glass, air is a faster, less optically dense medium (with a lower refractive index).

Calculating the angle of refraction

• The direction in which a ray bends, and the precise angle, can be calculated if the type and refractive indices of both media are known.
• The effect of refraction can be calculated using a neat little equation called the law of refraction (also known as Snell’s law).
• If three of the variables are known, the law of refraction can be used to calculate the fourth.
• Tables of refractive indices are available for common materials so that the change in direction of a ray can be calculated.
• Tables of refractive indices for common materials often provide both the refractive index for white light as well as indices for specific wavelengths.

For an explanation of the refractive index (index of refraction) of a medium see: Refractive Index Explained.

For an explanation of how to use the refractive index of a medium see: How to Use the Refractive Index of a Medium.

For an explanation of the Law of Refraction see: Snell’s Law of Refraction Explained.

#### Angle of incidence

The angle of incidence measures the angle at which incoming light strikes a surface. The angle of incidence is measured ...

#### Medium

Any material through which an electromagnetic wave propagates (travels) is called a medium (plural media). In optics, a medium is ...

#### Angle of reflection

The angle of reflection measures the angle at which reflected light bounces off a surface. The angle of reflection is ...

#### Angle of incidence

The angle of incidence measures the angle at which incoming light strikes a surface. The angle of incidence is measured ...

• SLIDES are optimized for viewing on-screen.
• ILLUSTRATIONS are optimized for printing on A4 pages in portrait format.
###### SLIDES
• Slides are available in JPG and AI (Adobe Illustrator) file formats.
• Titles: Slides have titles.
• Backgrounds: Black.
• Size: 1686 x 1124 pixels (3:2 aspect ratio).
###### ILLUSTRATIONS
• Illustrations are available in JPG and AI two file formats.
• Titles: No titles.
• Backgrounds: White.
• Size: 1686 x 1124 (3:2 aspect ratio). So all illustrations reproduce at the same scale when inserted into Word documents etc.
• Labels: Calibri 24pt Italic.

#### File formats: JPG & AI

• JPG (JPEG) diagrams are 1686 x 1124 pixels (3:2 aspect ratio).
• If a JPG diagram doesn’t fit your needs, you can download it as an AI (Adobe Illustrator) file and edit it yourself.
• JPG files can be placed or pasted directly into MS Office documents.
• All AI (Adobe Illustrator) diagrams are 1686 x 1124 pixels (3:2 aspect ratio).
• All our diagrams are created in Adobe Illustrator as vector drawings.
• Save as or export AI files to other formats including PDF (.pdf), PNG (.png), JPG (.jpeg) and SVG(.svg) etc.
