RGB Colour & Spectral Colour

TRY SOME QUICK QUESTIONS AND ANSWERS TO GET STARTED
What are the two primary colours of light that together make cyan?
In the RGB colour model green and blue are the two primary colours that together make cyan!
What is the RGB colour model?
RGB is a colour model used to produce a full palette of colours by mixing red, green and blue light sources in different proportions.
What do the letters RGB refer to?
RGB refers to the colours red, green and blue. These are the primary colours used by the RGB colour model to mix wavelengths of light to produce a palette of as many as 16 million colours.
Can orange, yellow and violet be produced by combining pairs of the spectral colours red, green and blue?
Yes! The spectral colours red, green and blue can be combined in pairs to produce orange, yellow and violet when using an additive colour model.
Can spectral colours be arranged in a band with red at one end and violet at the other?
Yes! When spectral colours are arranged in a diagram, the order in which they appear corresponds with their wavelength. The easiest way to show this is a band of colours of increasing wavelength with red at one end and violet at the other.

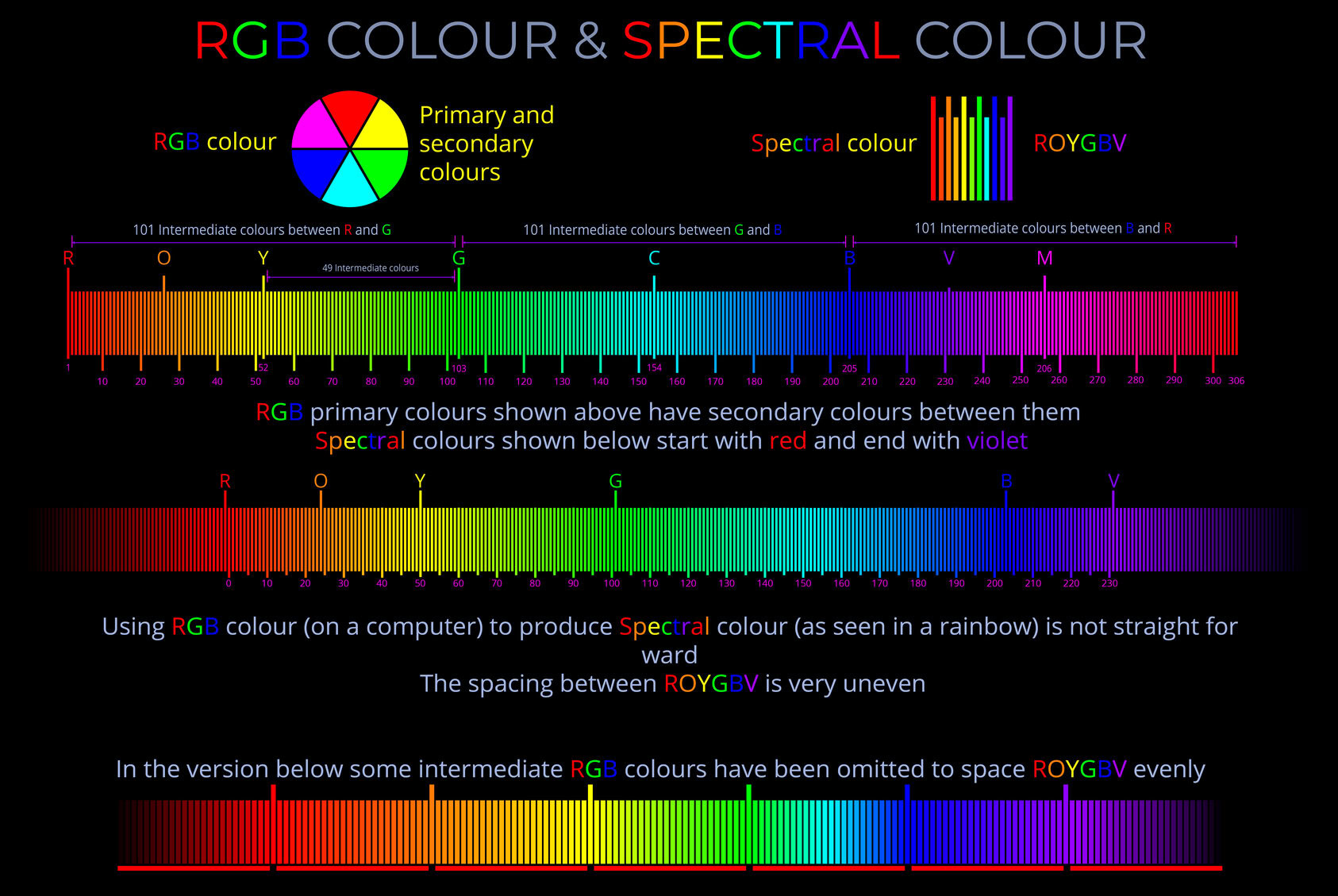

About the diagram

Some key terms

Visible spectrum

The visible part of the electromagnetic spectrum is called the visible spectrum.

  • The visible spectrum is the range of wavelengths of the electromagnetic spectrum that correspond with all the different colours we see in the world.
  • As light travels through the air it is invisible to our eyes.
  • Human beings don’t see wavelengths of light, but they do see the spectral colours that correspond with each wavelength and colours produced when different wavelengths are combined.
  • The visible spectrum includes all the spectral colours between red and violet and each is produced by a single wavelength.
  • The visible spectrum is often divided into named colours, though any division of this kind is somewhat arbitrary.
  • Traditional colours referred to in English include red, orange, yellow, green, blue, and violet.
Primary colour

Primary colours are a set of colours from which others can be produced by mixing (pigments, dyes etc.) or overlapping (coloured lights).

  • The human eye, and so human perception, is tuned to the visible spectrum and so to spectral colours between red and violet. It is the sensitivity of the eye to the electromagnetic spectrum that results in the perception of colour.
  • A set of primary colours is a set of pigmented media or coloured lights that can be combined in varying amounts to produce a wide range of colour.
  • This process of combining colours to produce other colours is used in applications intended to cause a human observer to experience a particular range of colours when represented by electronic displays and colour printing.
  • Additive and subtractive models have been developed that predict how wavelengths of visible light, pigments and media interact.
  • RGB colour is a technology used to reproduce colour in ways that match human perception.
  • The primary colours used in colour-spaces such as CIELAB, NCS, Adobe RGB (1998) and sRGB are the result of an extensive investigation of the relationship between visible light and human colour vision.
RGB colour model

RGB colour is an additive colour model in which red, green and blue light is combined to reproduce a wide range of other colours.

  • The primary colours in the RGB colour model are red, green and blue.
  • In the RGB model, different combinations and intensities of red, green, and blue light are mixed to create various colours. When these three colours are combined at full intensity, they produce white light.
  • Additive colour models are concerned with mixing light, not dyes, inks or pigments (these rely on subtractive colour models such as the RYB colour model and the CMY colour model).
  • The RGB colour model works in practice by asking three questions of any colour: how red is it (R), how green is it (G), and how blue is it (B).
  • The RGB model is popular because it can easily produce a comprehensive palette of 1530 vivid hues simply by adjusting the combination and amount of each of the three primaries it contains.
Colour wheel
  • A colour wheel is a circular diagram divided into segments, featuring primary colours, and used to visualize the result of colour mixing.
  • Colour wheels can enhance understanding of colour relationships and assist with the accurate selection and reproduction of colours.
  • A colour wheel starts with segments representing primary colours. Additional segments are added between them to explore the outcome of mixing adjacent primary colours.
  • By adding more segments between existing ones, further mixing of adjacent colours can be explored.
  • A colour wheel exploring the additive RGB colour model starts with red, green, and blue primary colours.
  • A colour wheel exploring the subtractive CMY colour model starts with cyan, magenta, and yellow primary colours.
ROYGBV

ROYGBV is an acronym for the sequence of hues (colours) commonly described as making up a rainbow: red, orange, yellow, green, blue, and violet.

  • A rainbow spans the continuous range of spectral colours that make up the visible spectrum.
  • The human eye is tuned to the visible spectrum and so to spectral colours between red and violet.
  • ROYGBV are colours associated with a range of wavelengths rather than with unique values.
  • The visible spectrum is the small band of wavelengths within the electromagnetic spectrum that corresponds with all the different colours we see in the world.
  • The fact that we see the distinct bands of colour in a rainbow is an artefact of human colour vision.
White light

White light is the name given to visible light that contains all wavelengths of the visible spectrum at equal intensities.

  • As light travels through a vacuum or a medium it is described as white light if it contains all the wavelengths of visible light.
  • As light travels through the air it is invisible to our eyes.
  • When we look around we see through the air because it is very transparent and light passes through it.
  • The term white light doesn’t mean light is white as it travels through the air.
  • One situation in which light becomes visible is when it reflects off the surface of an object.
  • When white light strikes a neutral coloured object and all wavelengths are reflected then it appears white to an observer.
